PWAY PW-HT201H-100m: 4K HDMI Extender

RM950.00

SKU: PW-HT201H-100m

Weight: 0.35kg

Dimension:

LengthWidthHeight
18 cm15 cm4 cm

in stock
Shipping Charges
Pending for confirmation email

Shipping Charge will be calculated and given by Merchant after you place your order. No payment need to be done before the Merchant reply the shipping charges. Please contact the Merchant if you have any enquiry. Thanks!

  • Product Details

    Description

    Model: PW-HT201H-100m
    PWAY 4K HDMI Extender



    Quick facts

    • HDMI: HDMI 1.4
    • HDCP: Compliant HDCP1.2
    • Interface: HDMI, IR, RJ45, RS232 industrial terminal, DC, Indicator
    • Highest Resolution up to: 4K*2K@30Hz
    • Effective Range: 100m/328ft at 1080P, 70m/230ft at 4K×2K
    • Interface: HDMI, RJ45, RS232, DC port, IR OUT, IR IN, Indicator
    • Maximum data rate: 10.2Gbps
    • POC: Power over Cable, require one power adapter on TX or RX side
    • Function: Bi-directional RS232 signal transmission
    • Function: Bi-directional wide band IR pass-back (20-56KHz)
    • Compact size: 100*70*26mm
    • EDID: EDID pass-through
    • Color: Dark Grey

    Introduction

    The HDMI extender applies 4K technology, lossless transmit high-definition HDMI signal from the source up to 100m / 328 feet to your HD display, without any signal loss. It supports highest resolutions up to 4K*2K@30Hz, and maximum data rate 10.2Gbps. Bi-directional IR pass back function with wide band (20-56KHz). Bi-directional RS232 signal transmission. No loss of image quality installs in minutes and stabilize in product.

    Features

    • HDMI 1.4, HDCP 1.2 compliant.
    • Uncompressed point-to-point HDMI over Cat6 transmission.
    • Video Resolutions up to 4K×2K@30Hz.
    • Extend HDMI signal up to 100m (328 ft) at 1080P over a single CAT6 cable;
    • Extend HDMI signal up to 70m (230 ft) at 4K×2K over a single CAT6 cable.
    • POC (Power over cable), one power adapter on one side of the extender.
    • Bi-directional IR infrared control (20-56KHz).
    • Bi-directional RS232 control.
    • EDID pass-through.

    Specifications

    Video Standards HDMI 1.4, HDCP 1.2
    Maximum pixel clock 165MHz
    Maximum data rate 10.2Gbps
    Resolution UP to 4K*2K@30Hz
    Connector HDMI-A
    Impedance 100Ω
    IR Interface 3.5mm earphone seat
    Signal type Digital
    Signal direction Bidirectional
    IR frequency 20-56KHz
    RS232 Interface Industrial terminal
    Signal direction Bidirectional
    Baud rate Self-adaptive, Max: 115200bps
    Data bits 8
    Ethernet Interface RJ45
    Transmission distance 1080P: CAT6 up to 100m
    4K*2K: CAT6 up to 70m
    Other Power supply The power adapter: DC 12V/2A
    Power dissipation MAX 6W
    Temperature Operating: -5튠~ +70íŠ
    Humidity Operating: 5% ~ 90%
    Dimension 120*93*25mm
    The warranty 1 year free warranty

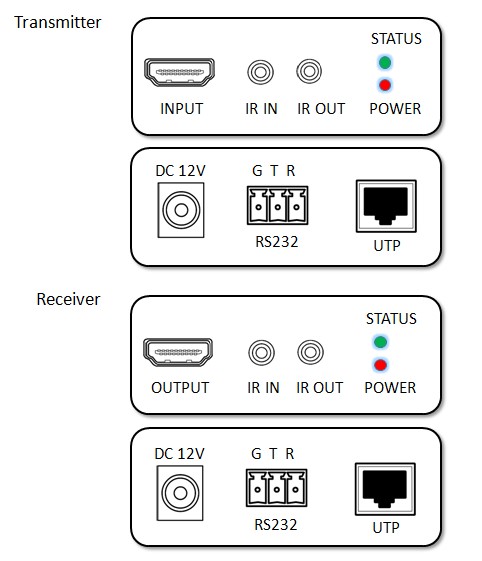

    Panel


    Port name Description
    INPUT/OUTPUT HDMI signal input/output
    IR IN/IR OUT IR signal input/output
    UTP Ethernet interface
    RS232 Serial port( G: Ground, T: transmit, R: receive )
    DC/12V Power adapter socket
    LED indicator Description
    STATUS System status indicator
    POWER System power indicator

    Package list

    HDMI transmitter ………………………………... 1 pc
    HDMI receiver …………………………………… 1 pc
    Power adapter ………………………………….. 1 pcs
    IR TX/RX terminal ………………………………. 1 set
