SANBO/WP-EY253

RM300.00

Weight: - kg

in stock
Shipping Charges
Pending for confirmation email

Shipping Charge will be calculated and given by Merchant after you place your order. No payment need to be done before the Merchant reply the shipping charges. Please contact the Merchant if you have any enquiry. Thanks!

  • Product Details
    Overview

    Electrical System
    Input voltage 200 - 240Vac, 50/60Hz
    Insulation Class Class I
    LED Driver Flicker Free - OSRAM OT/FT

    Light Source/Optical
    LED Type SMD 2835 with TM21 and LM80
    Color Temperature (CCT) Standard 4000K/6500K & (3000K and others upon request)
    Color Rendering Index (CRI) Ra > 80
    (Ra > 90 upon request)
    Life Time Residual Flux (L70), >50,000 hours @ Ta: 40°C
    Optical System ~120° Opal PC Extrusion Diffuser

    Fixtures
    Ingress Protection (IP) IP65
    Impact Resistance (IK) IK08
    Housing Material PC Extrusion and PC Side Covers
    UL-94 Fire Retardant Grade
    Working Temperature Ta : -30C to +40C

    Compliance Test
    Type Test Compliance (Luminaire)                 CB Scheme IEC 60598-1, EN 60598-1
    IEC & EN 60598-2-1, IEC/EN 62471
    EN 62493
    EMC Certified EN 61000-3-2, EN 61000-3-3
    EN 55015, EN 61547
    LED Compliance Test IESNA LM-80
    TM-21
    Ingress Protection Test Accord to IEC 60598-1 (IP65)
    Accord to IEC 60598-1 (IP65) IEC 62262 (IK08)

    Application
     • Carpark  • Staircase  •  Canopy  •  Garden Shed  •  Walkway  •  Corridors • Factory  • Warehouse  • Underground Tunnel

    Optional Item
    • Series Connection Double End Plug-in Version - EY253-36W-SC
    • Motion Sensor, Photocell
    • DALI / 1-10V Dimming Control
    • IoT Smart Control

    *Luminaires should be mounted in a shady or covered environment protected against direct sunlight.
    Due to the possible chemical reaction of polymer nature of housing, luminaire must not be installed in places where there are presence of high concentration of acid or alkaline enviroment.



    Specification

    MODEL NO. EY253-18W EY253-18WL EY253-36W EY253-50W
    Power Consumption  ±5% (W) 18W 18W 36W 50W
    Luminaire Flux ±5% (lm) 1,890 lm 1,980 lm 3,960 lm 5,500 lm
    System Efficacy ±5% (lm/W) 105 lm/W 110 lm/W 110 lm/W 110 lm/W
    Power Factor (PF) 0.98 0.98 0.98 0.98
    Replacement of Magnetic Fluorescent 1 x 36W 1 X 36W 2 x 36W 2 x 58W
    Total Harmonic Distortion (THD) % < 10% < 20% < 10% < 10%
    Colour Tolerance (SDCM) ≤6 ≤6 ≤6 ≤6
    Net Weight (kg) 0.71 1.08 1.10 1.32
    Gross Weight (kg) 18.38 22.15 22.15 20.15
    Product Dimension, L x W x H (mm) 650 x 71 x 82 1250 x 71 x 82 1250 x 71 x 82 1550 x 71 x 82
    Individual Carton Dimension, L x W x H (mm)  660 x 75 x 85 1260 x 75 x 85 1260 x 75 x 85 1560 x 75 x 85
    Master Carton Dimension, L x W x H (mm)  680 x 330 x 460 1280 x 330 x 370 1280 x 330 x 370 1575 x 250 x 370
    Quantity/Master Carton (pcs) (m3) 20 16 16 12
    CBM (m3) 0.103 0.156 0.156 0.146

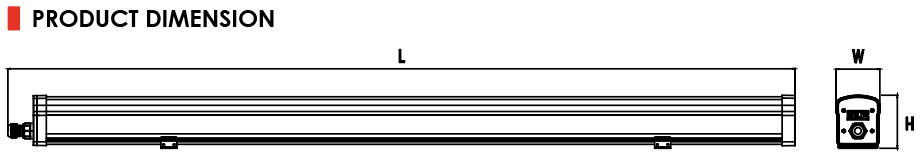

    Drawings

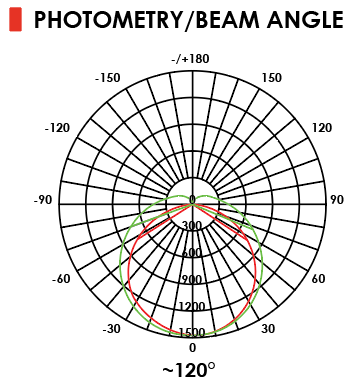

    Photometry

    Download
