Support fuel level sensor and temperature sensor, etc. Features such as multiple alarms, SOS emergency call, so on, highly competitive and cost-effective 4G GPS tracker developed for vehicle, motor and bus tracking.
Features
 |
SOS |
In emergent case, press SOS for 3 seconds to activate SOS alarm. Then the device will send SOS SMS to preset SOS numbers and then dial the numbers in a loop for 3 times until the call is picked up |
 |
Power cut-off alarm |
When the electricity supply of device is cut off, it will activate cut-off alarm |
 |
Vibration alarm |
When vehicle vibrates several times, the vibration alarm will be triggered. If no ignition after 3 minutes (ACC OFF), the device will send vibration alarm message immediately |
|
|

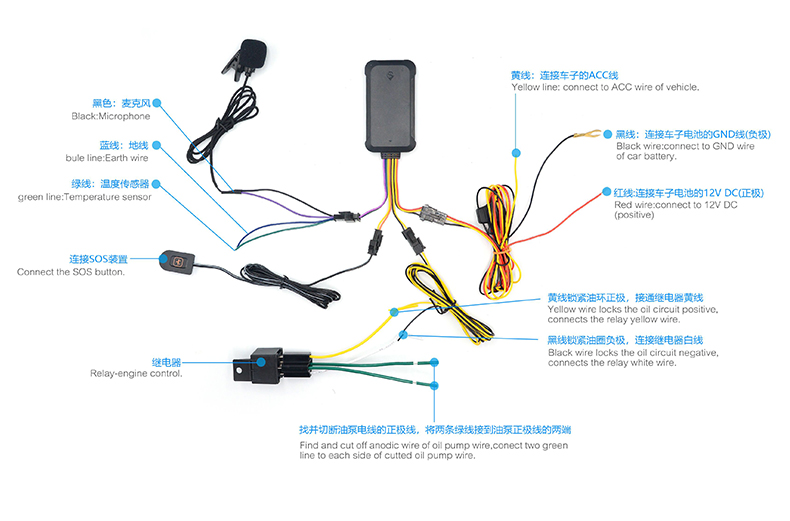

Oil/Electricity cut-off |
When vehicle is stolen, oil/electricity cut-off command can be sent by platform, APP or SMS |
 |
Restore oil/electricity |
When alarm is all-clear, you can send restore oil/electricity command by platform, APP or SMS and restore vehicle power |
 |
Restart device |
If GPRS is abnormal (device is offline), you can send SMS command RESET# to restart the device. Device will reboot after 20 seconds after receiving the command |
Specifications
|
Frequency |
FDD B1/B2/B3/B4/B5/B7/B8/B28丨TDD B40丨WCDMA 850/900/1900/2100MHz丨GSM 850/900/1800/1900MHz |
|
Networks |
WCDMA丨EDGE丨GPRS |
|
Operating Voltage |
9-36V DC<300mA |
|
Cold Start |
＜35s |
|
Hot Start |
＜2s |
|
Location Accuracy |
<10 meters |
|
Operating Temperature |
-20℃ ~ +70℃ |
|
Weight |
80g |
|
Dimension |
83(L) x 46(W) x 14.5(H) mm |
Parameter
|
Size |
L83.0mm*W46.0mm*L16.0mm 50--110mA |
|
Working Temperature |
-30°C ~75°C |
|
Working Voltage |
8V ~ 50V |
|
Continuous Working Time |
2h ~ 4h |
|
Weight |
80g |
|
Built-in Battery |
150mAH |
|
Data Storage Quantity |
12000 |
|
IP Rating |
IP 65 |
Hardware Specification
|
Location Accuracy |
<3m |
|
GPS Chip |
TD1030 |
|
GSM Frequency |
WCDMA B1/B2/B5/B6/B8 GSM:850/900/1800/1900MHz |
|
GPS Frequency |
1575.42MHz 1561.10MHz |
|
Phase Error |
RMSPE<5, PPE<20 |
|
TTFF |
Avg.hot start <1s Avg.cold start<28s |
|
Max Frequency Error |
± 0.1ppm |
|
GPS Channel |
35 |
|
Acquisition Sensitivitiy |
-147dBm |
|
Tracking Sensitivitiy |
-163dBm |
|
GPRS |
/ |
|
Memory |
32+32Mb |
|
Max Output |
/ |
|
Communication Protocol Mode |
TCP |
''I Track'' Platform Features
|
Real-time Tracking |
✓ |
|
Over-speed Alarm |
✓ |
|
Customized (WEB/APP) |
✓ |
|
Device Management |
✓ |
|
ACC Detection |
✓ |
|
Geo-fence |
✓ |
|
History Playback |
3 months |
|
Report and Statistics |
✓ |
